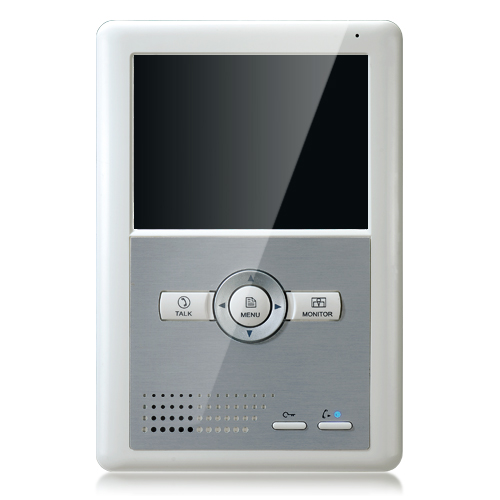

DT25

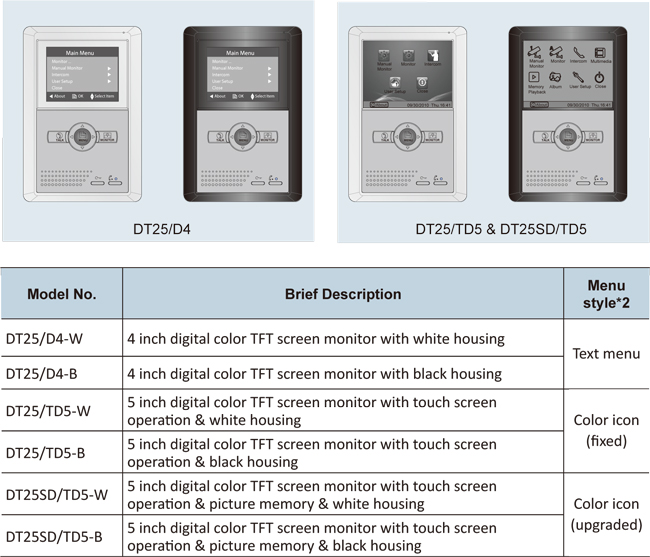

Ordering Information

Features
  • Plastic housing with aluminum front panel;
  • Streamlined & thin design with 23mm thickness only;
  • Black or white color housing for choosing;
  • Text menu for 4" or color icon menu for 5";
  • Touch screen operation on 5 inch monitor;
  • (*1) Inner 128MB flash memory plus extended max.16G SD card external picture recording;
  • 12pcs 8-chord Melodies for choose freely;
  • Compatible with all DT outdoor & Indoor stations ;
  • (*1) Multi language & Remote controller operation(customized);
  • (*1) Depends on models;

Specification
  • Power Supply : DC 24V (supplied by PS4-24V or PS5-24V);
  • Power Consumption: Standby 15mA; Working status 450mA(DT25SD/TD5); or Standby 15mA; Working status 200mA(DT25/D4); or Standby 30mA; Working status 450mA(DT25/TD5 );
  • Display Device: 4’’ and 5’’ Digital TFT screen with 4:3 rate;
  • Resolution: 320*240 pixels(4’’), 640*480 pixels(5’’);
  • Memory: 128MB inner flash memory, Micro mini SD card;
  • Picture Format: TVS (JPG);
  • Wiring: 2 wires (non-polarity);
  • Monitor Dimension: 200(H)×135(W)×23(D)mm;
